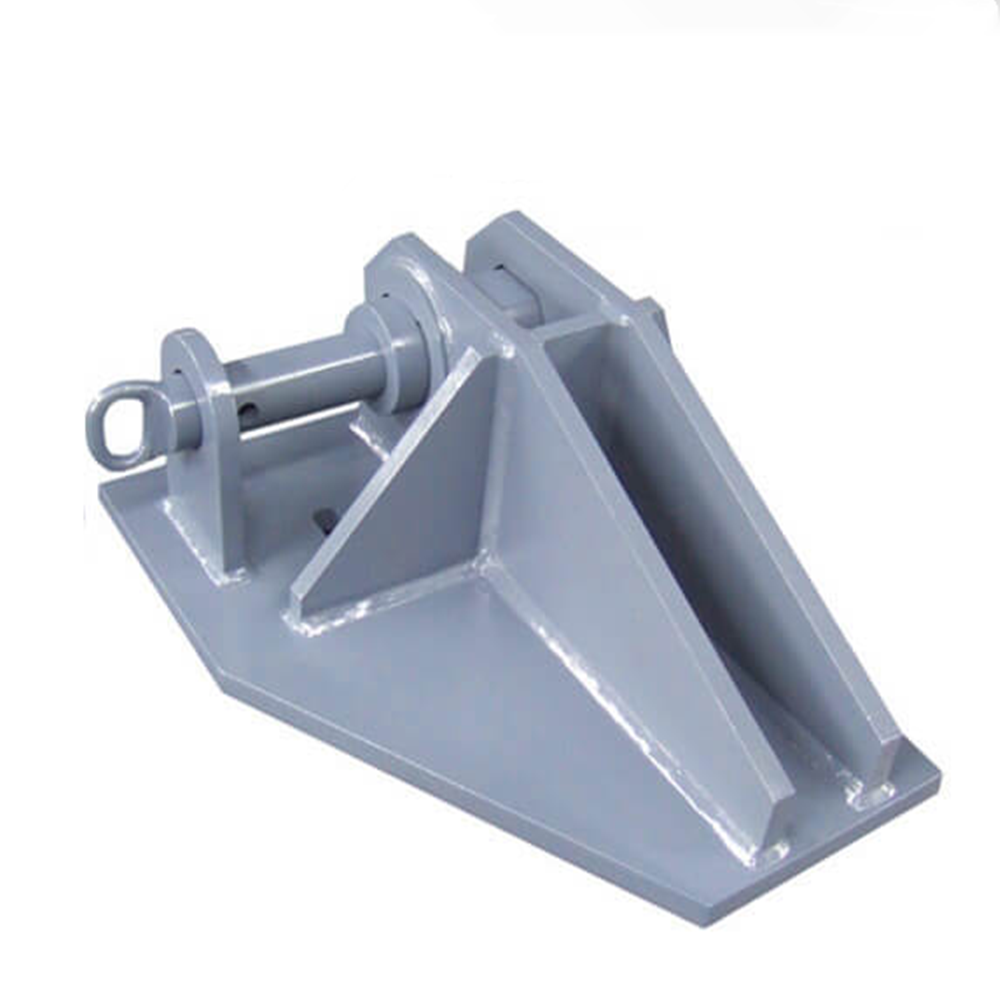

Marine Towing Arrangement Smit Bracket

SMIT Bracket, also known as towing bracket, mooring bracket, is a commonly used marine mooring device welded to the deck. It is made of high grade alloy steel and can withstand loads from 450KN to 4000KN for chain sizes from 28mm to 132mm. The surface is coated with anti-rust primer for good corrosion resistance.

Type: OCIMF JIS F2029:1997
Material: high-grade alloy steel, 35CrMo
SWL100/150/200/250/320/380 Tonnes
Suitable Chain Diameter: Grade 2/3 ,  sizes up to ø114mm;
Oil Companies International Marine Forum (OCIMF) type Look up for anchors and mooring chains ;
All our brackets are designed to be compatible with the breaking load of the chain being deployed. Certificate: BV, ABS, LR, DNV, NK, RS, IRS
